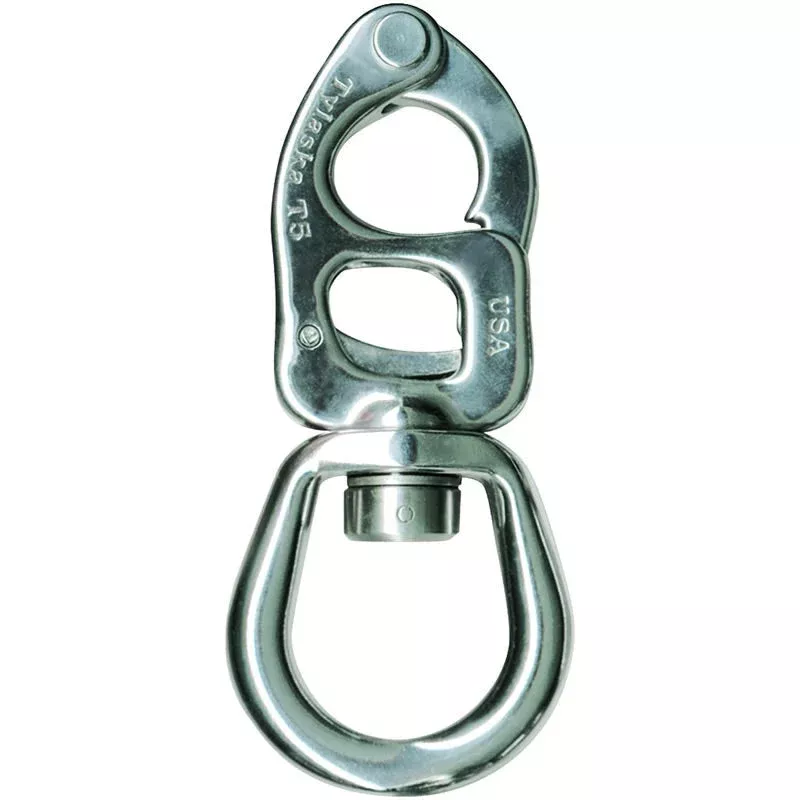

Tylaska T5 Trigger Shackle, Large Bail

Tylaska T5 Trigger Shackle, Large Bail

Tylaska T5 Snap Shackles are perfect for small boat applications requiring immense strength and low weight. They have a breaking strength of 5,000 pounds and weigh just 2.2 ounces in the standard bail configuration. Ideal for J-24s, Mumm 30s and similar boats. The T5 standard and large bail snap shackles are available with a decorative bronze PVD or black oxide finish. The T5 is intended for static load applications only and is NOT approved for lifting applications.

Specifications Bail Type Large A 0.53″ (13.5 mm) B .81″ (20.6 mm) C 3.37″ (85.6 mm) D .29″ (7.4 mm) E .30″ (7.6 mm) F .44″ (11.1 mm) Weight 2.7 oz (77 g) Working Load Limit 2,500 lbs (1,130 kg) Breaking Strength 5,000 lbs (2,270 kg)
