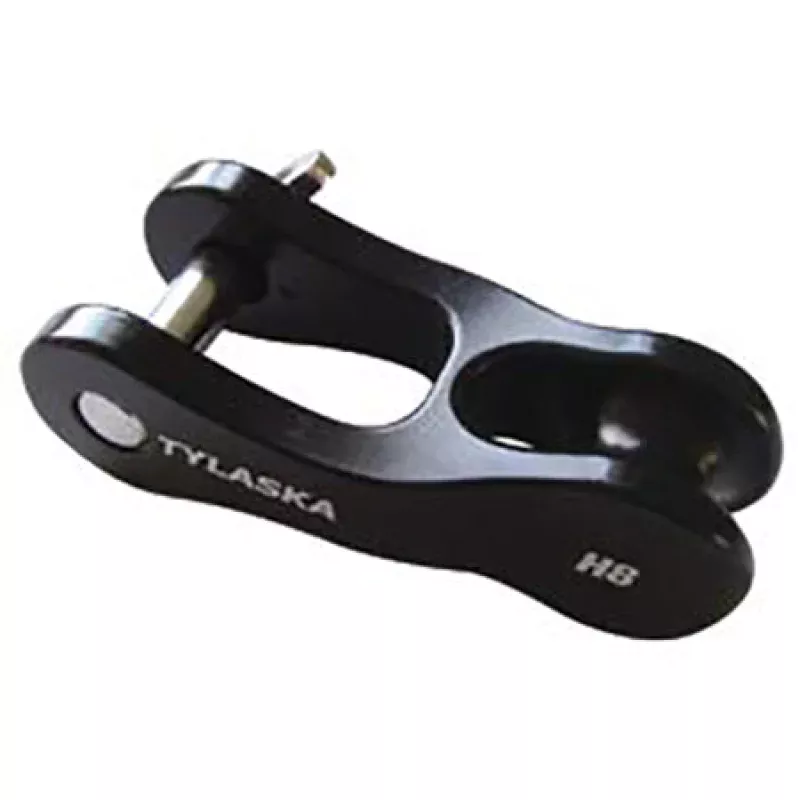

Tylaska H8 Halyard Shackle

Tylaska H8 Halyard Shackle

Tylaska’s halyard shackles have the highest strength-to-weight ratio of any existing halyard shackle on the market. A captive 17-4PH stainless pin makes for trouble-free operation. The all-metal machined line thimble allows for use as a 2-1 purchase without the wear or melting that occurs with plastic molded thimbles. Lines can also be permanently spliced for a fixed halyard

Specifications A 3.16″ (80.2 mm) B 1.32″ (33.5 mm) C .28″ (7.1 mm) D 1.50″ (38.2 mm) E .83″ (21.2 mm) F .76″ (19.3 mm) G .56″ (14.3 mm) H 1″ (25.4 mm) I 1.07″ (27.1 mm) J .31″ (8.1 mm) Line Size 3/8″-1/2″ (10-12 mm) Working Load Limit 4,000 lbs (1,810 kg) Breaking Strength 8,000 lbs (3,630 kg) Weight 3.1 oz (87 g)
