Home » Shop » hot sale » Tylaska H8 2:1 Split Halyard Shackle (with Sheave)

Tylaska H8 2:1 Split Halyard Shackle (with Sheave)

Original price was: $74.30.Current price is: $37.17.

Sale!

84 in stock

SKU: ONSHACKLES44041 Category:

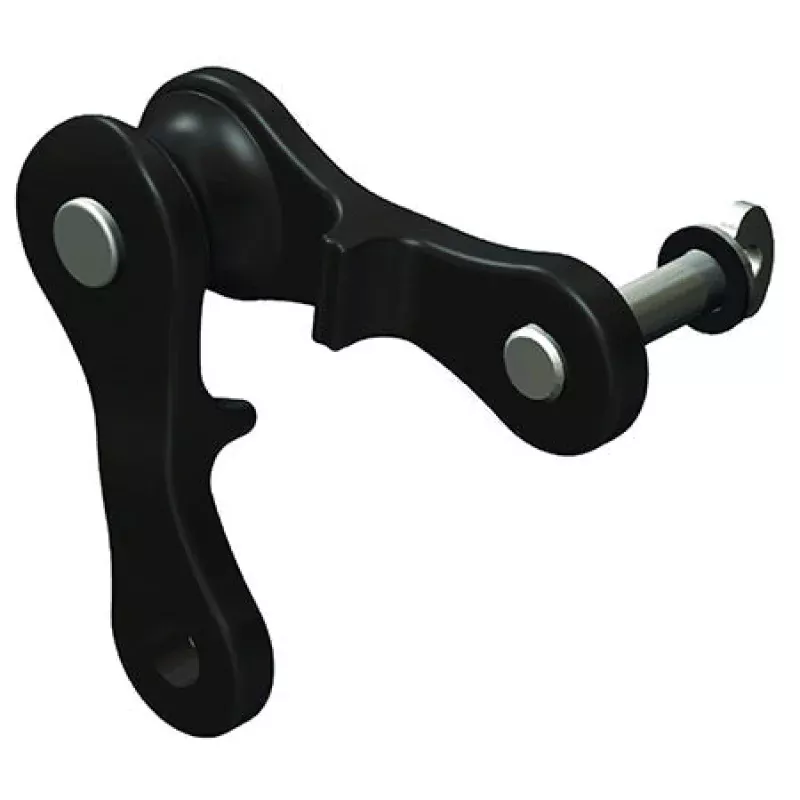

Tylaska H8 2:1 Split Halyard Shackle (with Sheave)

Tylaska’s halyard shackles have the highest strength-to-weight ratio of any existing halyard shackle on the market. A captive 17-4PH stainless pin makes for trouble-free operation. The all-metal machined line thimble allows for use as a 2-1 purchase without the wear or melting that occurs with plastic molded thimbles. Lines can also be permanently spliced for a fixed halyard.

The Tylaska Split 2:1 halyard shackle offers snatch block convenience to the popular lightweight offering from Tylaska. These are ideal for quick installation and removal from existing rigging.

Specifications A 3.31″ (84.1 mm) B 1.32″ (33.5 mm) C .28″ (7.1 mm) D 1.5″ (38.2 mm) E .83″ (21.2 mm) F .76″ (19.3 mm) G .59″ (15 mm) H 1″ (25.4 mm) I 1.24″ (31.5 mm) J .32″ (8.1 mm) Line Size 3/8″ – 9/16″ (10-14 mm) Working Load Limit 4,000 lbs (1,810 kg) Breaking Strength 8,000 lbs (3,630 kg) Weight 3.8 oz (109 g)
