Tylaska H20 Halyard Shackle

Original price was: $81.60.Current price is: $62.78.

Sale!

22 in stock

SKU: ONSHACKLES44037 Category:

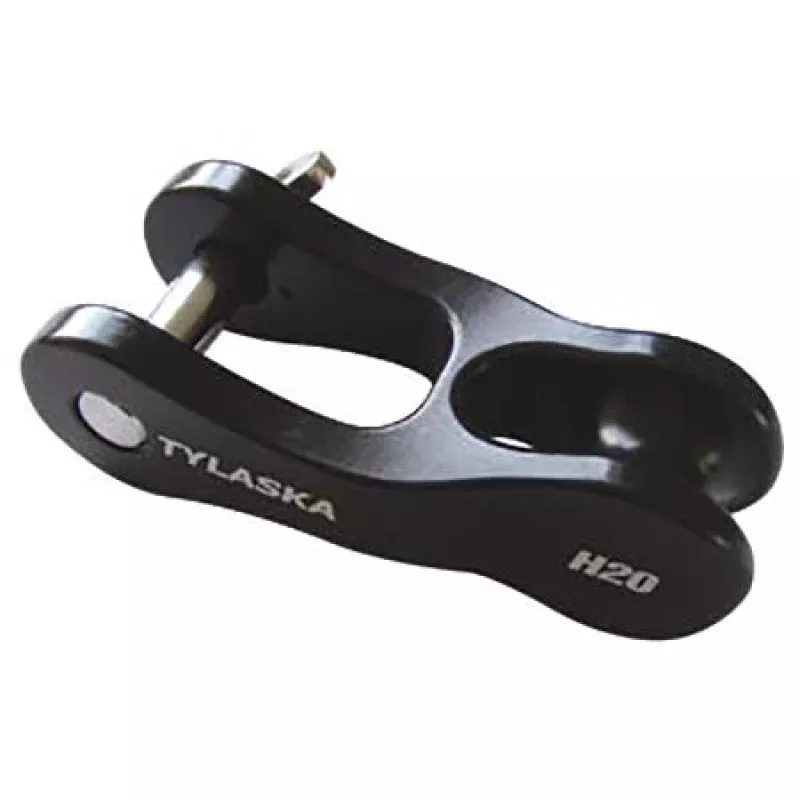

Tylaska H20 Halyard Shackle

Tylaska’s halyard shackles have the highest strength-to-weight ratio of any existing halyard shackle on the market. A captive 17-4PH stainless pin makes for trouble-free operation. The all-metal machined line thimble allows for use as a 2-1 purchase without the wear or melting that occurs with plastic molded thimbles. Lines can also be permanently spliced for a fixed halyard.

Specifications A 4.84″ (122.9 mm) B 1.84″ (46.7 mm) C .42″ (10.7 mm) D 2.50″ (63.5 mm) E 1.50″ (38.1 mm) F 1″ (25.4 mm) G .75″ (19 mm) H 1.50″ (38.1 mm) I 1.58″ (40.1 mm) J .50″ (12.7 mm) Line Size 1/2″-5/8″ (12-16 mm) Working Load Limit 10,000 lbs (4,540 kg) Breaking Strength 20,000 lbs (9,070 kg) Weight 10.5 oz (296 g)
