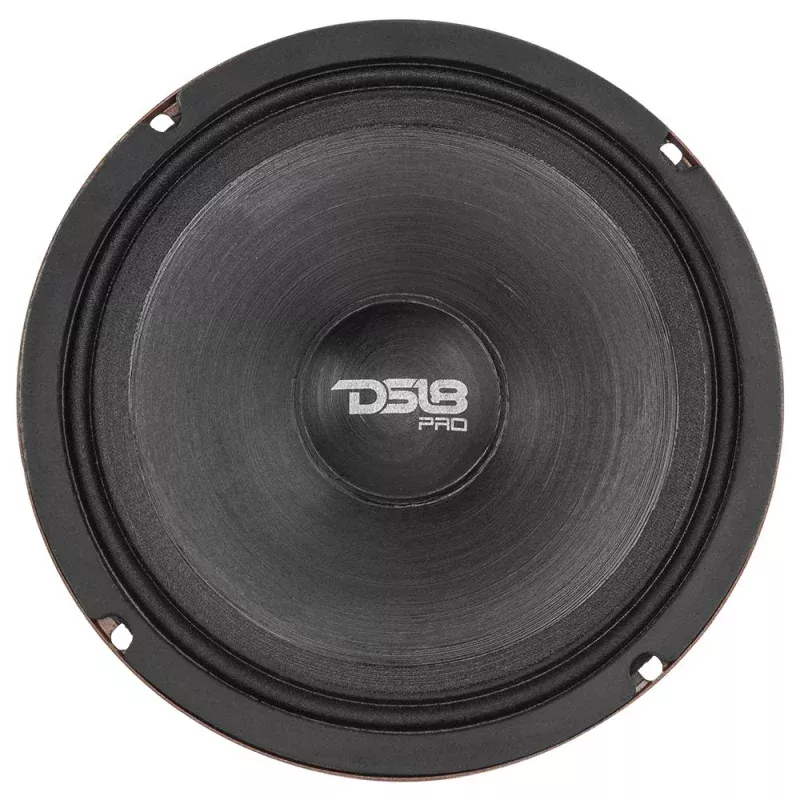

DS18 Slim 6.5 Motorcycle Midrange Speaker [PRO-SM6.2]

Slim 6.5″ Motorcycle Midrange Speaker

The DS18 Slim midrange speaker was made for the motorcycle music fanatics. IPX6 rating, protecting it from any water that might come along the ride.

Specifications:

• Model:PRO-SM6.2
• Type:Midrange Loudspeaker
• Size:6.5″
• RMS Power:200W
• MAX Power:400W
• Frequency Response:80-14kHz
• Impedance:2 ohm
• Sensitivity:95dB

Materials:

• Surround:Cloth Edge
• Frame:Red Steel Basket
• Cone:Non-Pressed Paper Cone
• Magnet:Ferrite
• Voice Coil Wire:CCAW

Diameters:

• Voice Coil Size:1.5″
• Magnet Size:20 oz
• Mounting Depth:2.19″ (55.5mm)
• Cut-Out Dimension:5.67″ (144mm)

Parameters:

• Vas1.817 LTR
• Xmax8 mm
• Fs200 Hz
• Qms5.726
• Qes0.871
• Qts0.751
• Re2 Ohms

Sold as an Individual

Specifications:

• Watts RMS: 200w
• Watts Max: 400w
• Size: 6.5″
• QTY: Single
• Mounting Style: Surface
• Cutout Size: 5.67″
• LED Lighting: No
• Box Dimensions: 3″H x 7″W x 7″L WT: 3.6 lbs
• UPC: 810005181853

Owner’s Manual (pdf)
